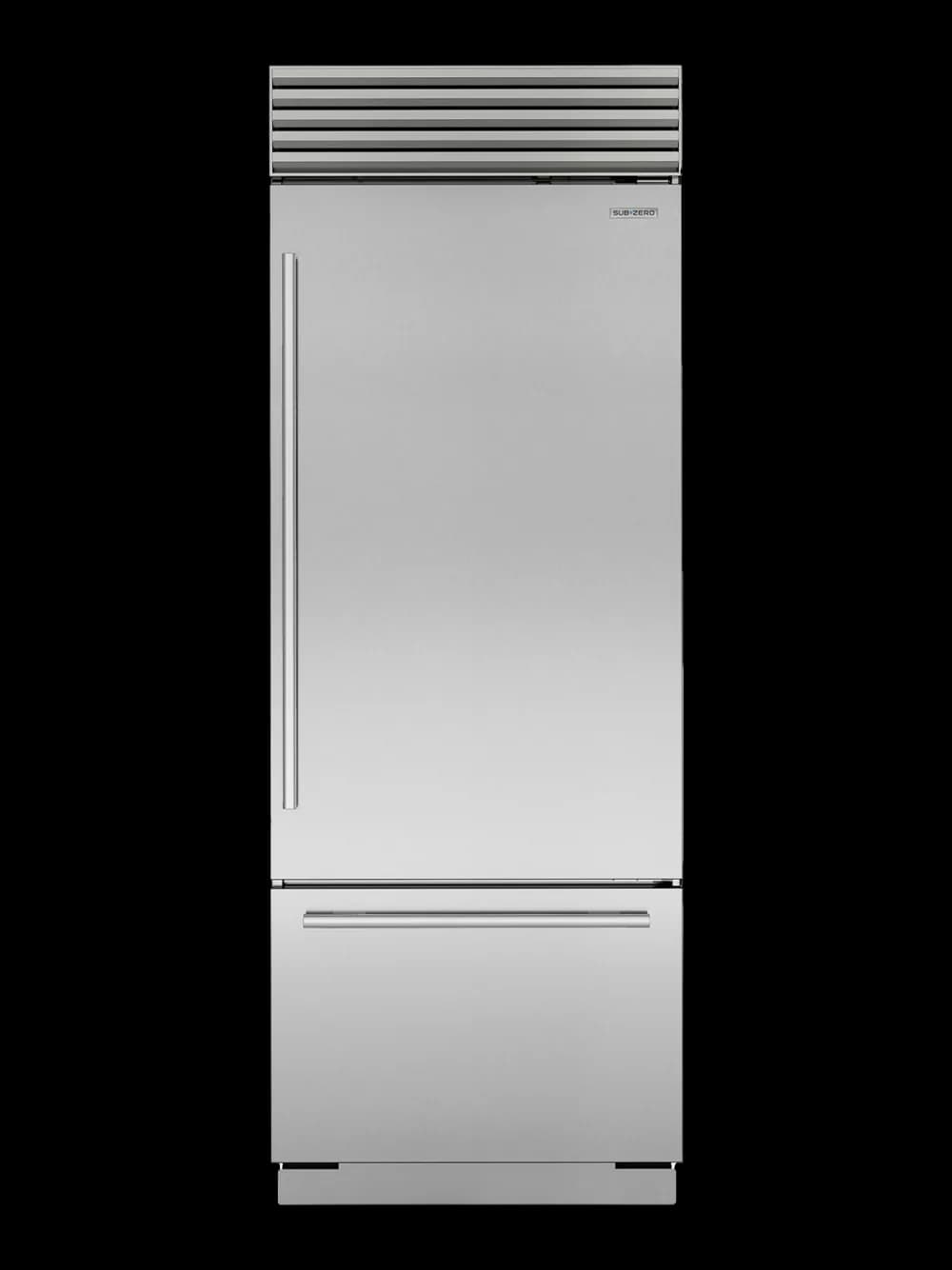

Sub-Zero CL3050U
Built-in Bottom Mount · Built-in
Overall width: 30 in
Height with hinge: 84 in
Cabinet depth: 23.875 in
Reviewed evidence; includes calculated or inferred values
Measurement evidenceReviewed Sub-Zero refrigerator dimensions and fit checks
17 reviewed Sub-Zero model records. Requirements vary by exact model: a shared brand or nominal size does not establish the same dimensions or installation clearances.
Recorded configurations: 6 Built-in Bottom Mount; 2 Single Door Refrigerator; 5 Built-in French Door; 4 Built-in Side-by-Side.
Check your opening →How Sub-Zero refrigerators compare
ExactFit has reviewed 17 Sub-Zero refrigerators against the manufacturer's own dimension guides, installation instructions and spec sheets. Within one brand the measurements still vary by exact model: two Sub-Zero refrigerators sold in the same nominal size can need different openings, different side and rear gaps, and different room for the doors to open. Use the figures below to see how wide that spread is, then check the exact model you are considering.
What the verified measurements show
The opening width they need ranges from 29 1/2 in for the Sub-Zero CL3050U to 47 1/2 in for the Sub-Zero PRO4850G, with half needing 35 1/2 in or less. With a door open at 90 degrees, 14 of these models have a verified depth; the typical one needs 55 1/8 in from the back wall, and the deepest, the Sub-Zero PRO3650G, needs 61 1/4 in. 17 models have a verified hinge-side wall clearance for the door to open 90 degrees: from 2 3/8 in to 2 5/8 in, typically 2 5/8 in.

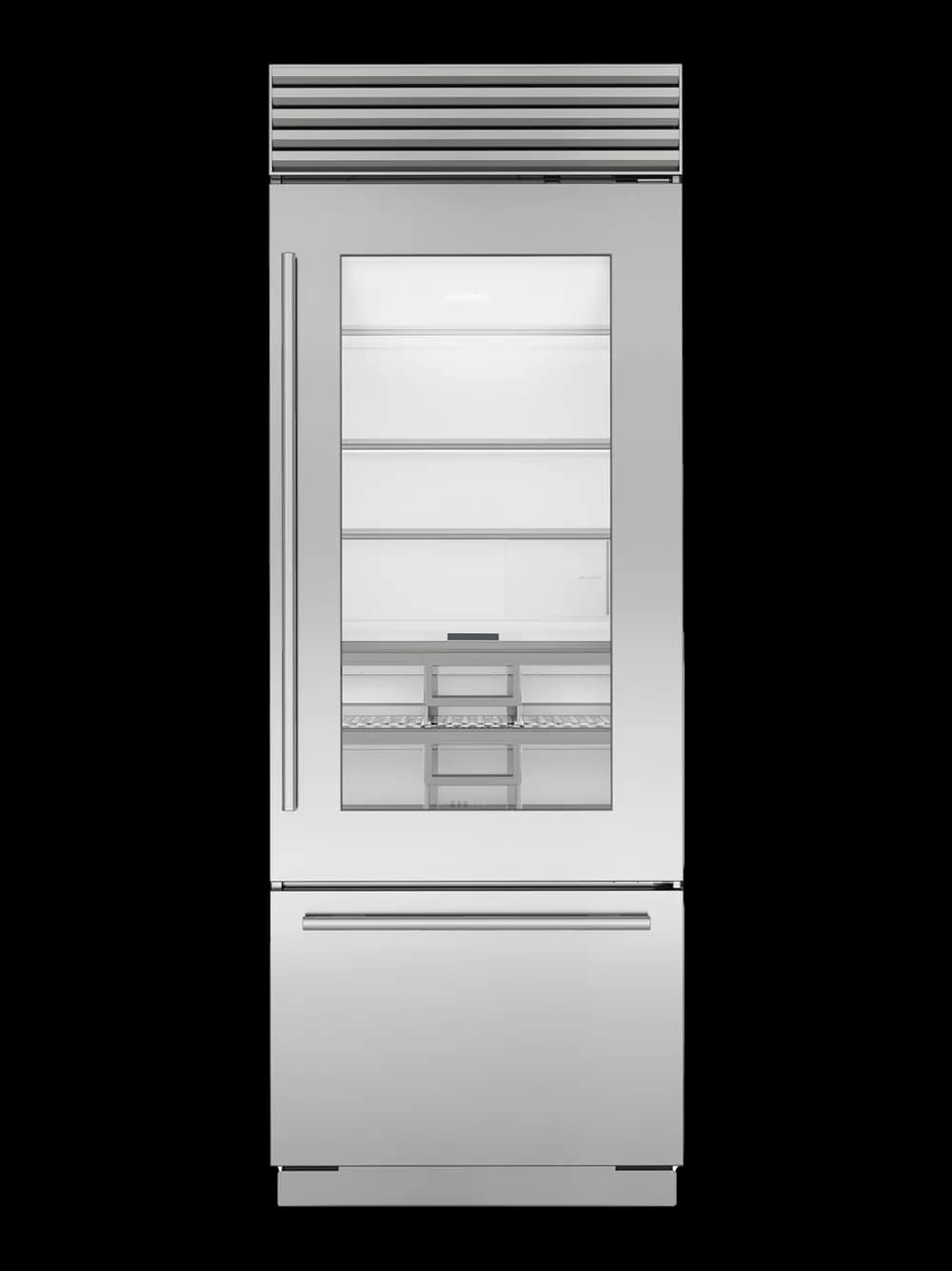

Sub-Zero CL3050UG
Built-in Bottom Mount · Built-in
Overall width: 30 in
Height with hinge: 84 in
Cabinet depth: 23.875 in
Reviewed evidence; includes calculated or inferred values
Measurement evidence

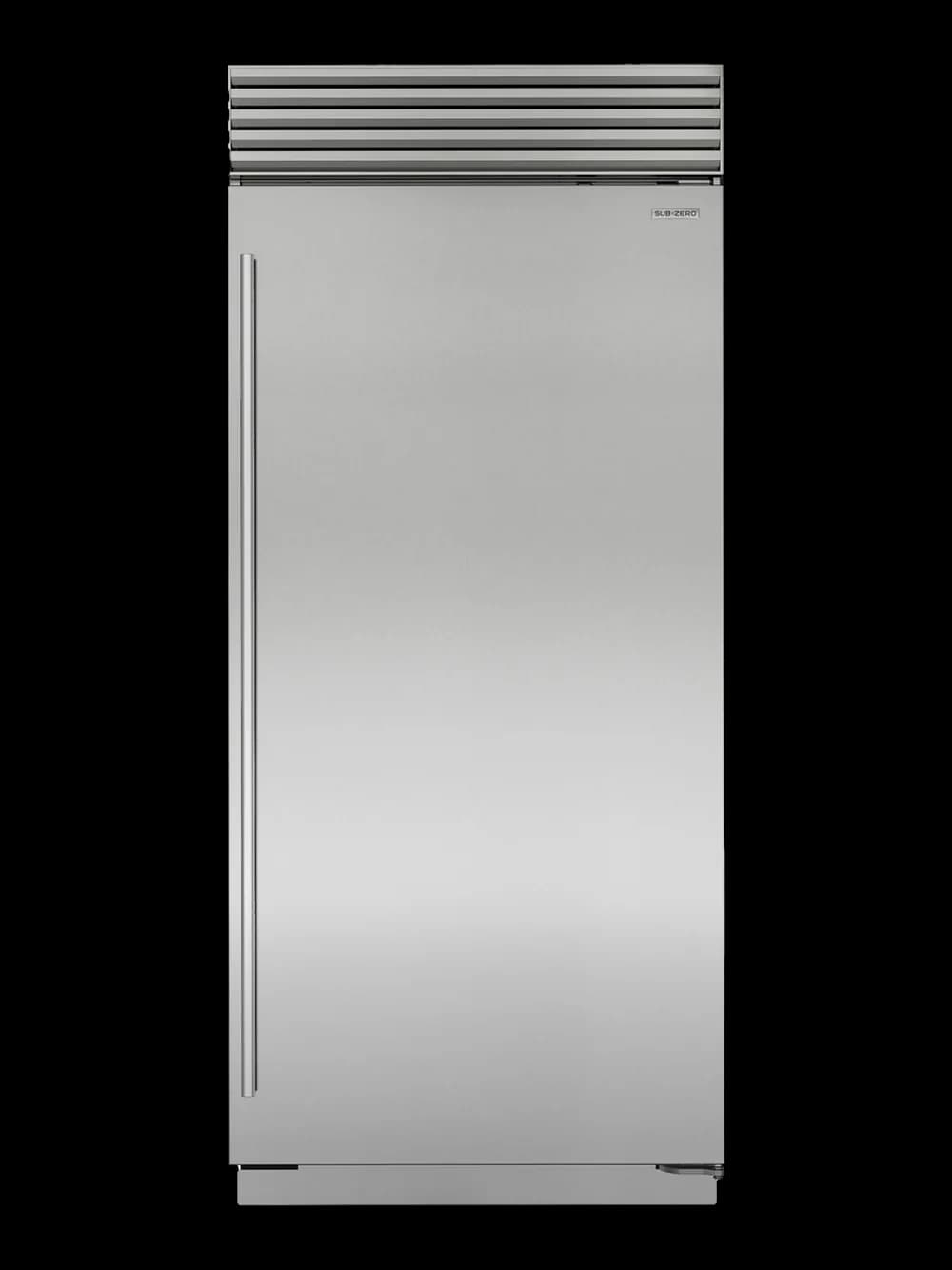

Sub-Zero CL3650R
Single Door Refrigerator · Built-in
Overall width: 36 in
Height with hinge: 84 in
Cabinet depth: 23.875 in
Reviewed evidence; includes calculated or inferred values
Measurement evidence

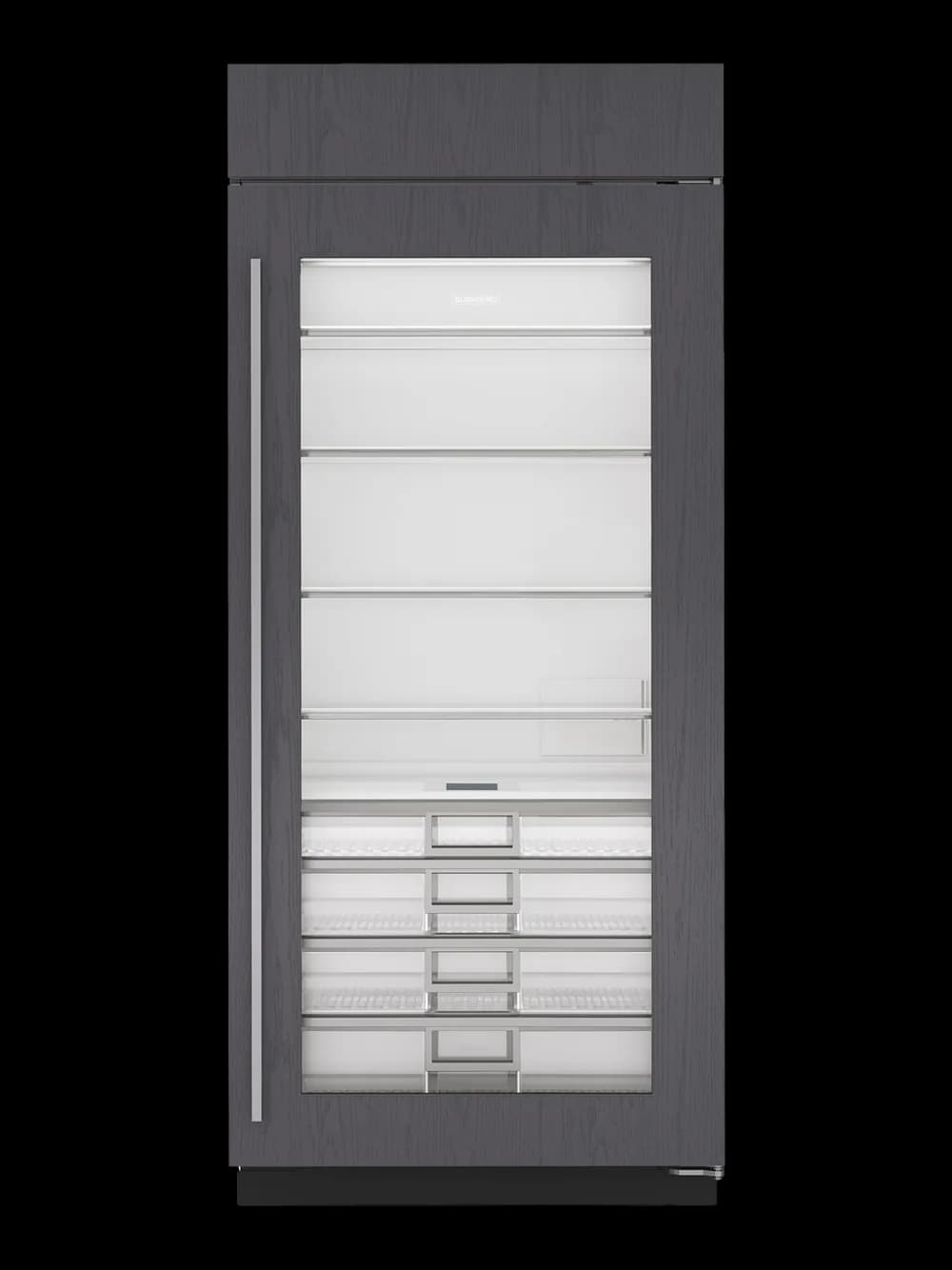

Sub-Zero CL3650RG
Single Door Refrigerator · Built-in
Overall width: 36 in
Height with hinge: 84 in
Cabinet depth: 23.875 in
Reviewed evidence; includes calculated or inferred values
Measurement evidence

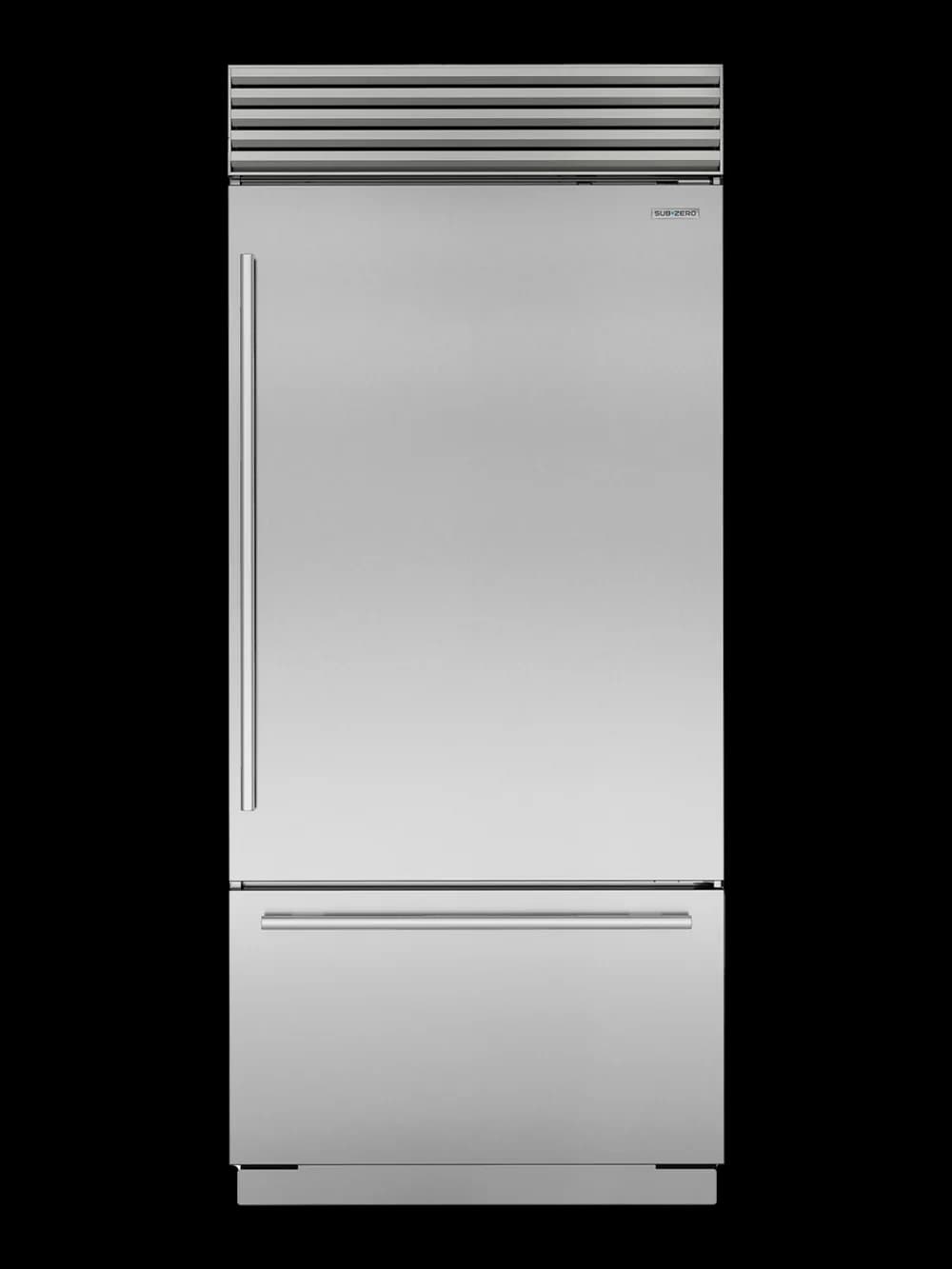

Sub-Zero CL3650U
Built-in Bottom Mount · Built-in
Overall width: 36 in
Height with hinge: 84 in
Cabinet depth: 23.875 in
Reviewed evidence; includes calculated or inferred values
Measurement evidence

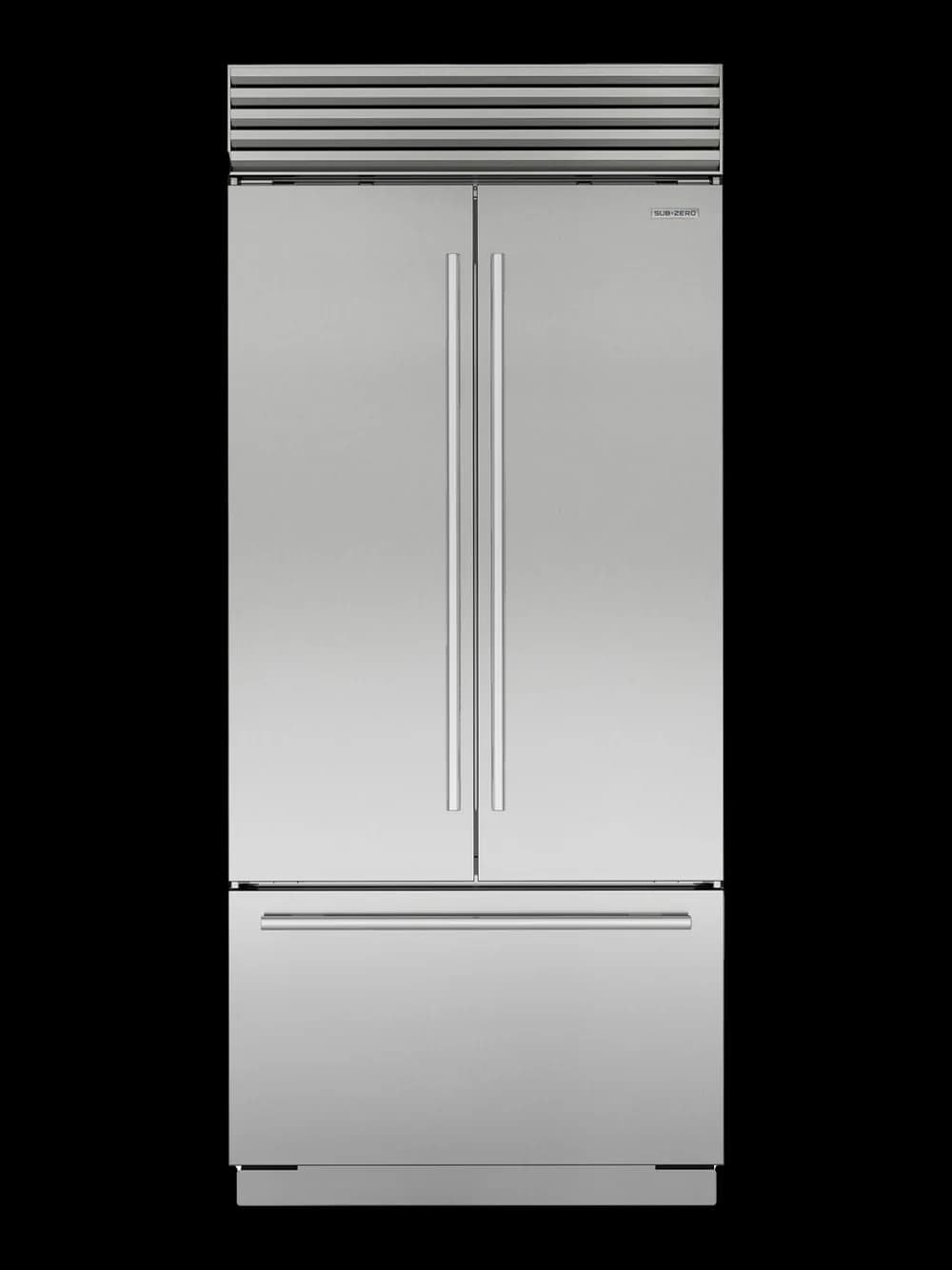

Sub-Zero CL3650UFD
Built-in French Door · Built-in
Overall width: 36 in
Height with hinge: 84 in
Cabinet depth: 23.875 in
Reviewed evidence; includes calculated or inferred values
Measurement evidence

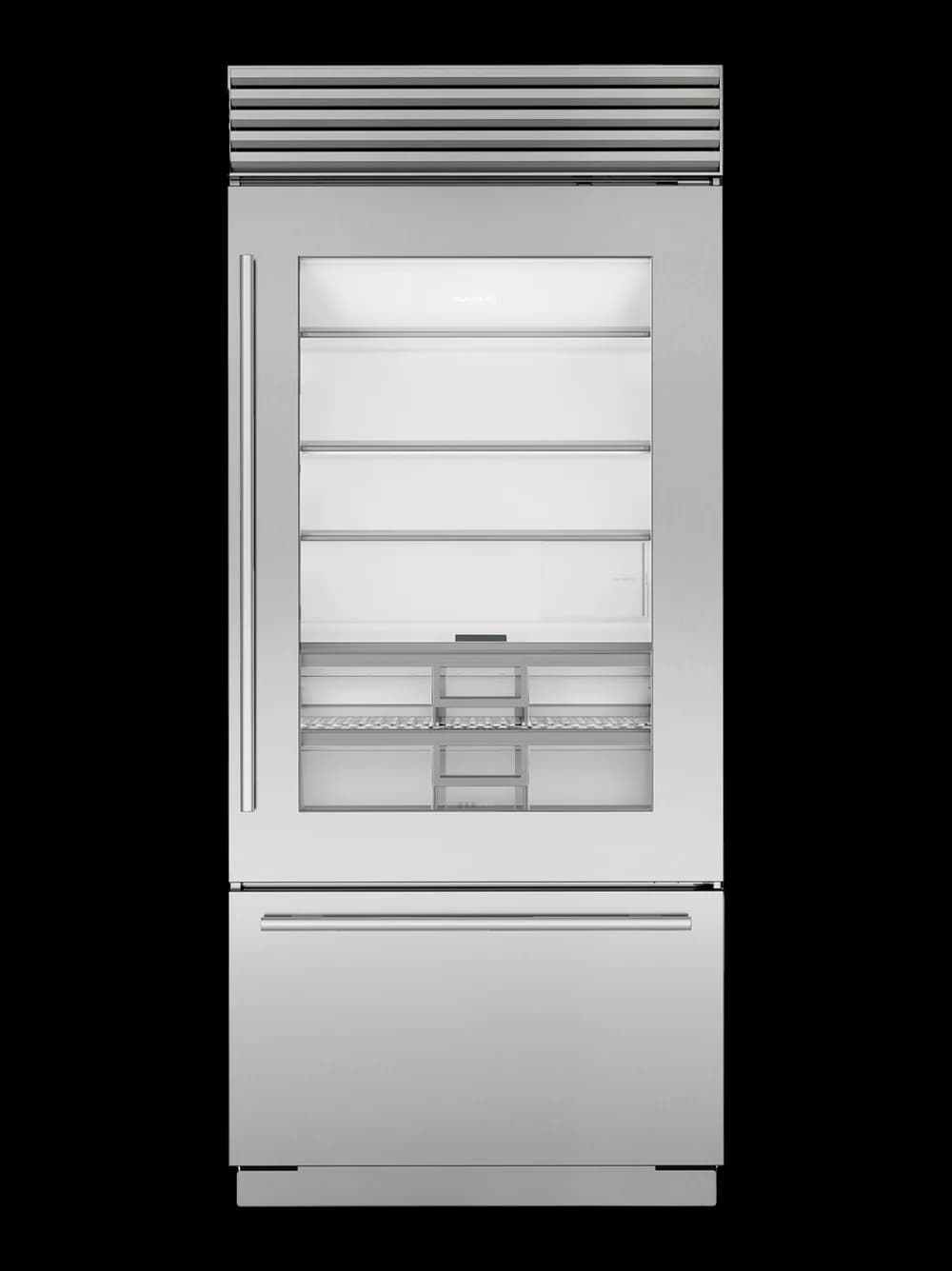

Sub-Zero CL3650UG
Built-in Bottom Mount · Built-in
Overall width: 36 in
Height with hinge: 84 in
Cabinet depth: 23.875 in
Reviewed evidence; includes calculated or inferred values
Measurement evidence

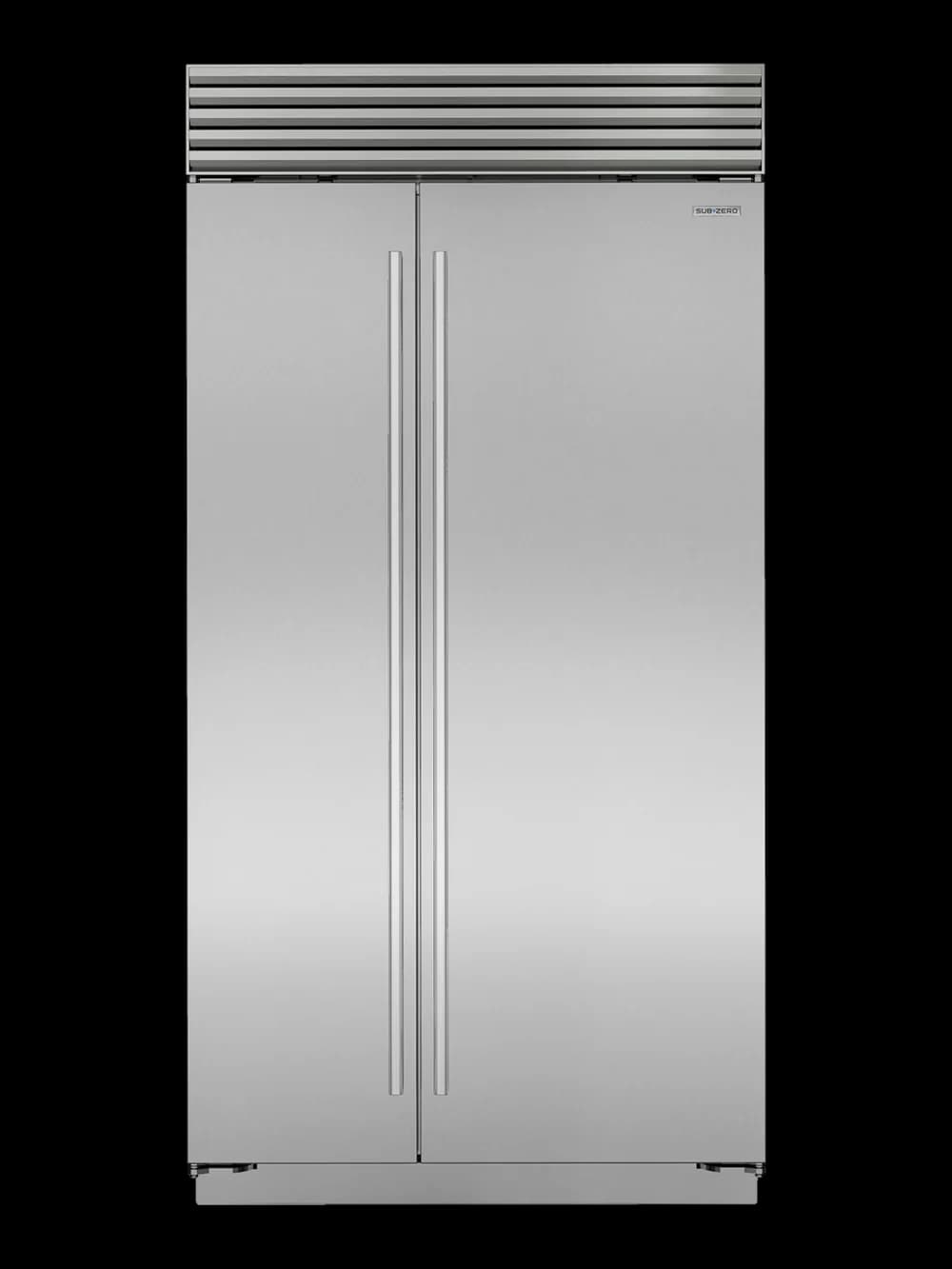

Sub-Zero CL4250S
Built-in Side-by-Side · Built-in
Overall width: 42 in
Height with hinge: 84 in
Cabinet depth: 23.875 in
Reviewed evidence; includes calculated or inferred values
Measurement evidence

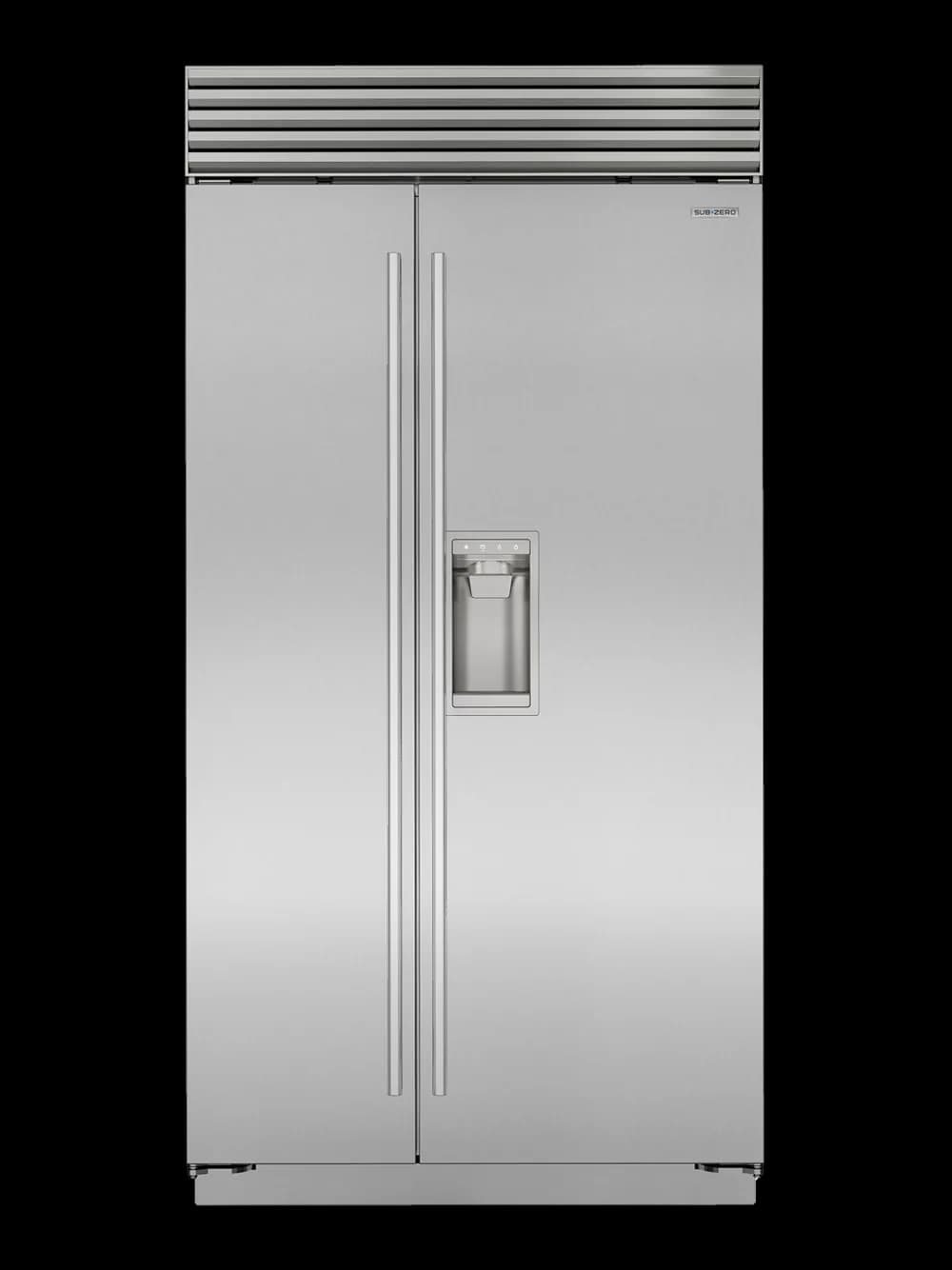

Sub-Zero CL4250SD
Built-in Side-by-Side · Built-in
Overall width: 42 in
Height with hinge: 84 in
Cabinet depth: 23.875 in
Reviewed evidence; includes calculated or inferred values
Measurement evidence

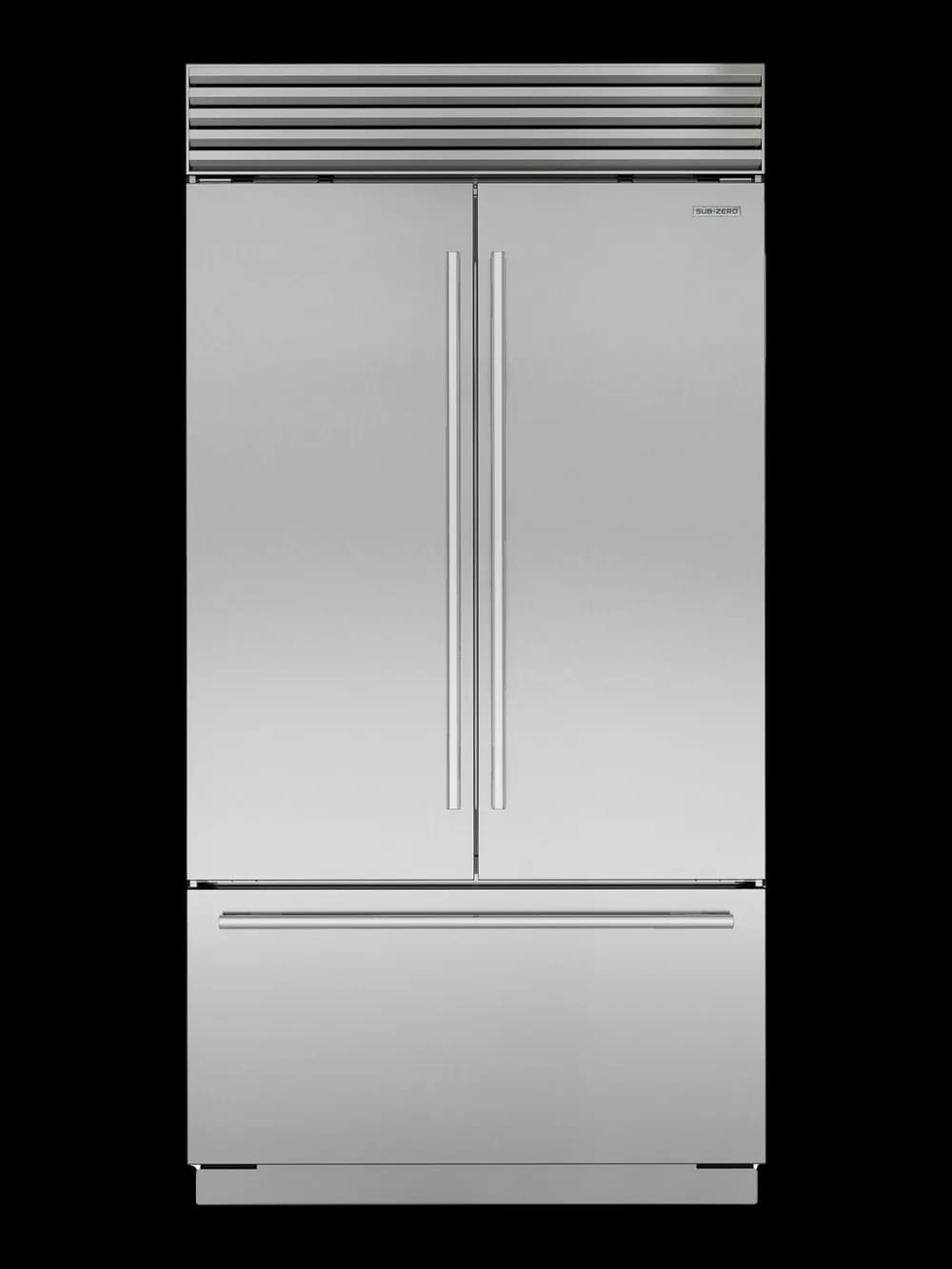

Sub-Zero CL4250UFD
Built-in French Door · Built-in
Overall width: 42 in
Height with hinge: 84 in
Cabinet depth: 23.875 in
Reviewed evidence; includes calculated or inferred values
Measurement evidence

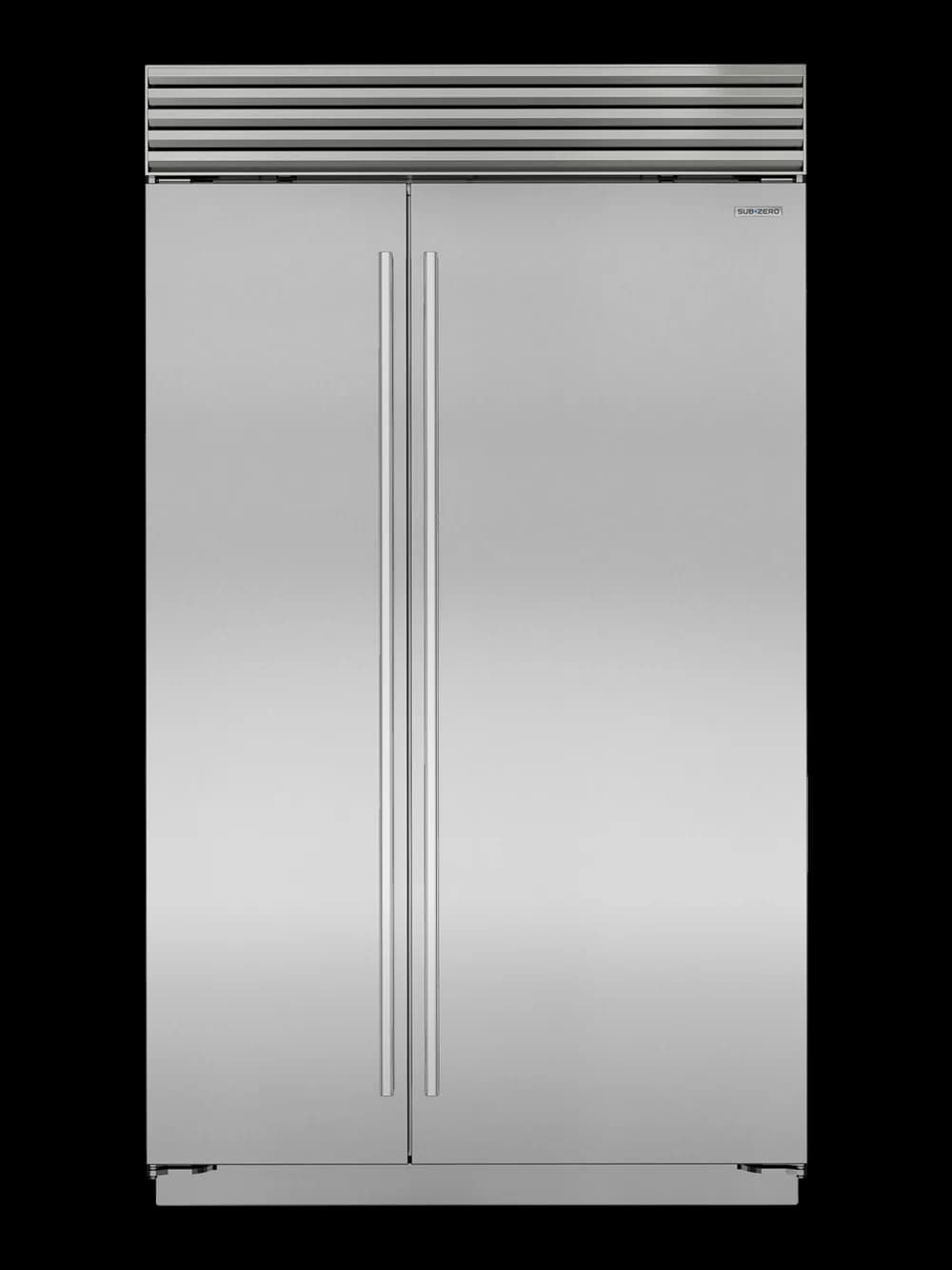

Sub-Zero CL4850S
Built-in Side-by-Side · Built-in
Overall width: 48 in
Height with hinge: 84 in
Cabinet depth: 23.875 in
Reviewed evidence; includes calculated or inferred values
Measurement evidence

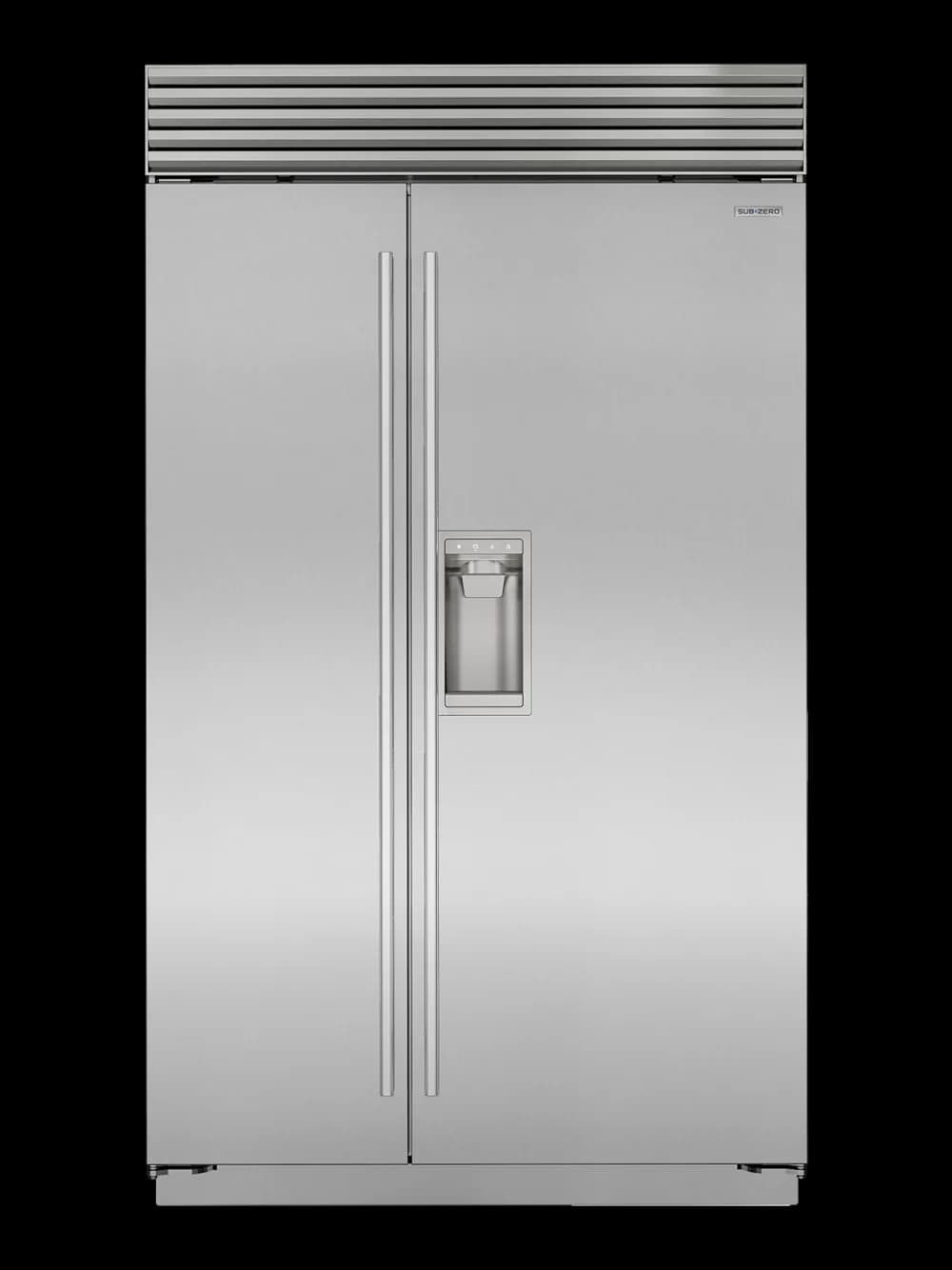

Sub-Zero CL4850SD
Built-in Side-by-Side · Built-in
Overall width: 48 in
Height with hinge: 84 in
Cabinet depth: 23.875 in
Reviewed evidence; includes calculated or inferred values
Measurement evidence

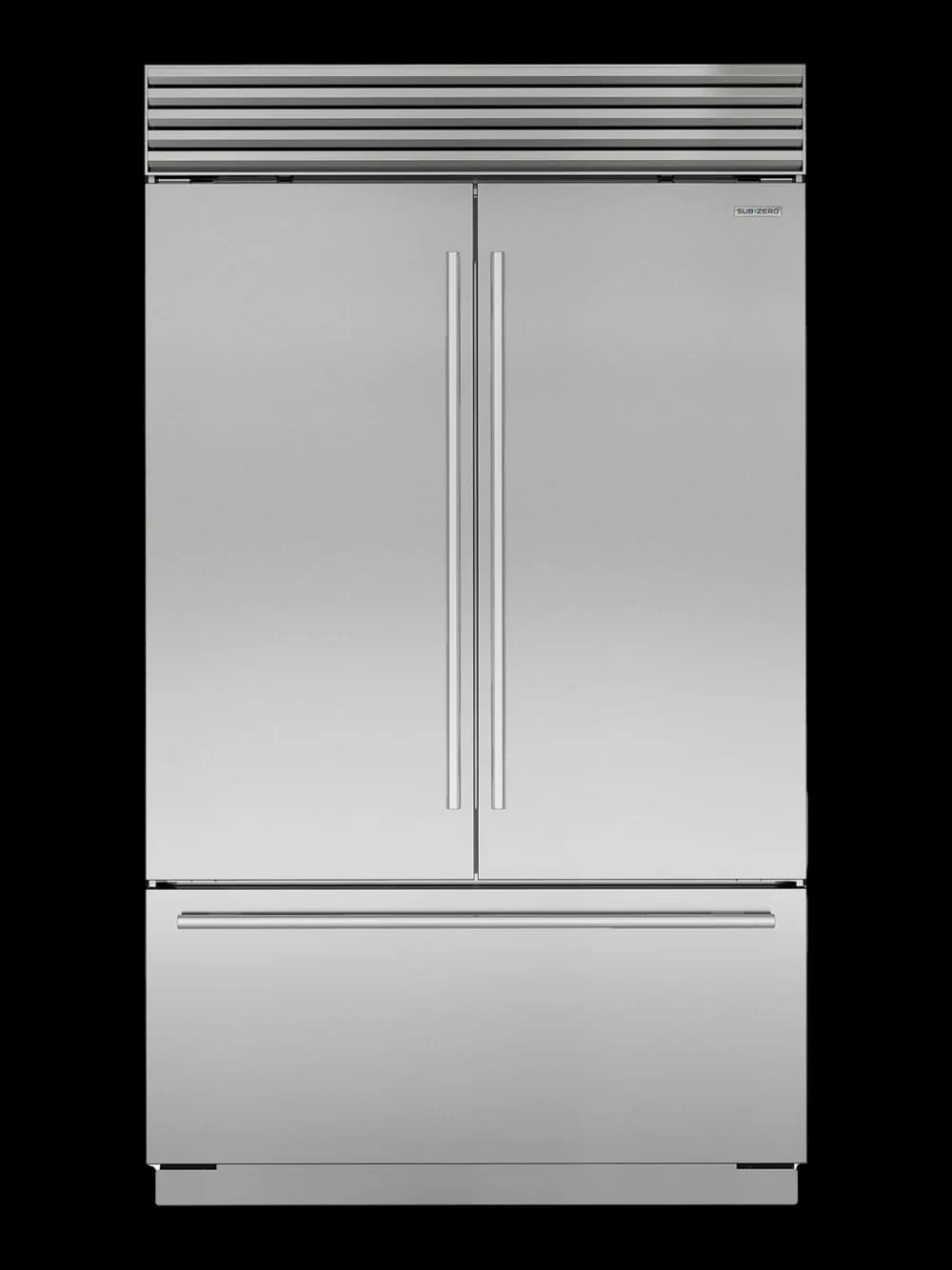

Sub-Zero CL4850UFD
Built-in French Door · Built-in
Overall width: 48 in
Height with hinge: 84 in
Cabinet depth: 23.875 in
Reviewed evidence; includes calculated or inferred values
Measurement evidence

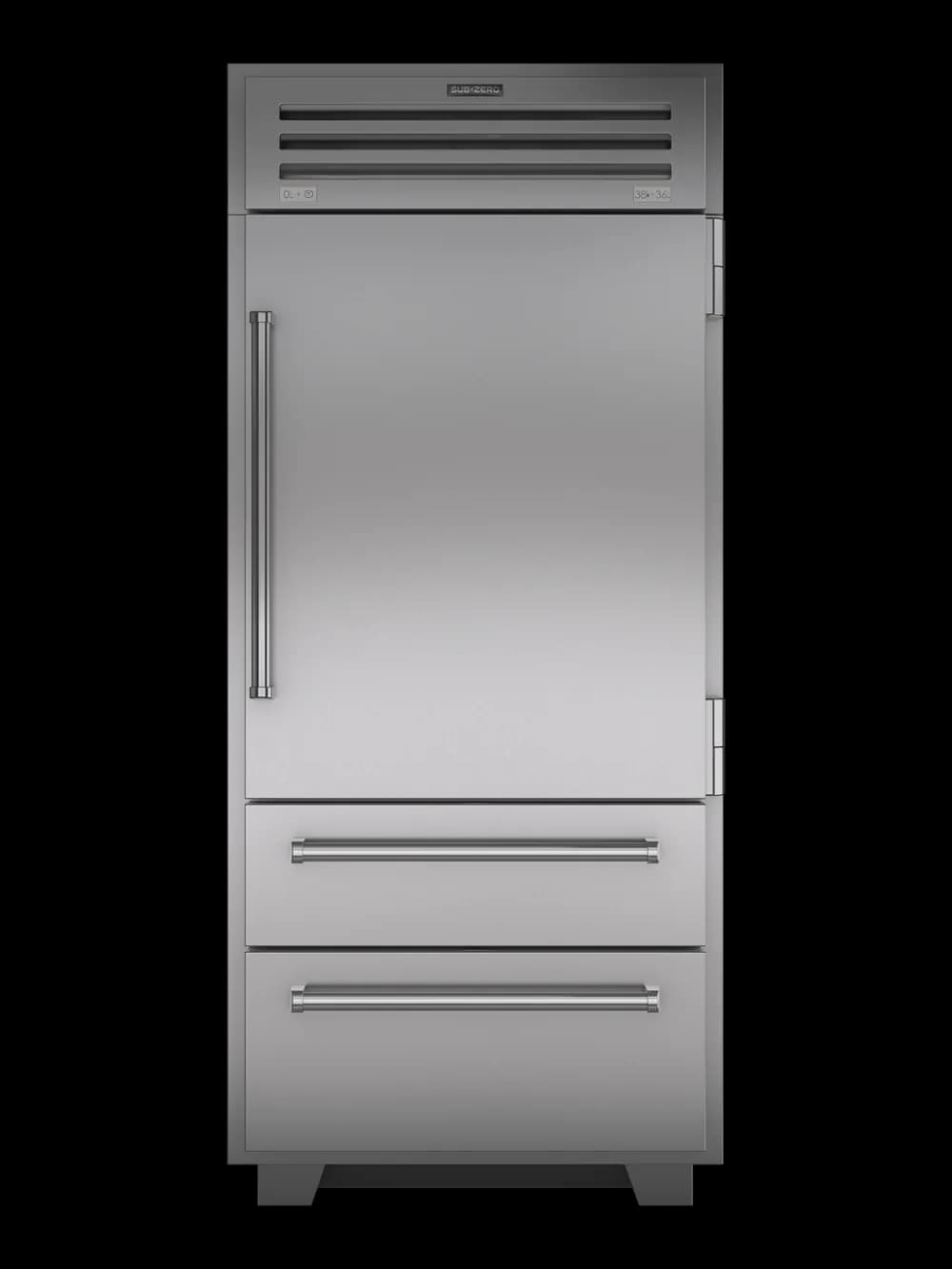

Sub-Zero PRO3650
Built-in Bottom Mount · Built-in
Overall width: 36 in
Height with hinge: 84 in
Cabinet depth: 23.875 in
Reviewed evidence; includes calculated or inferred values
Measurement evidence

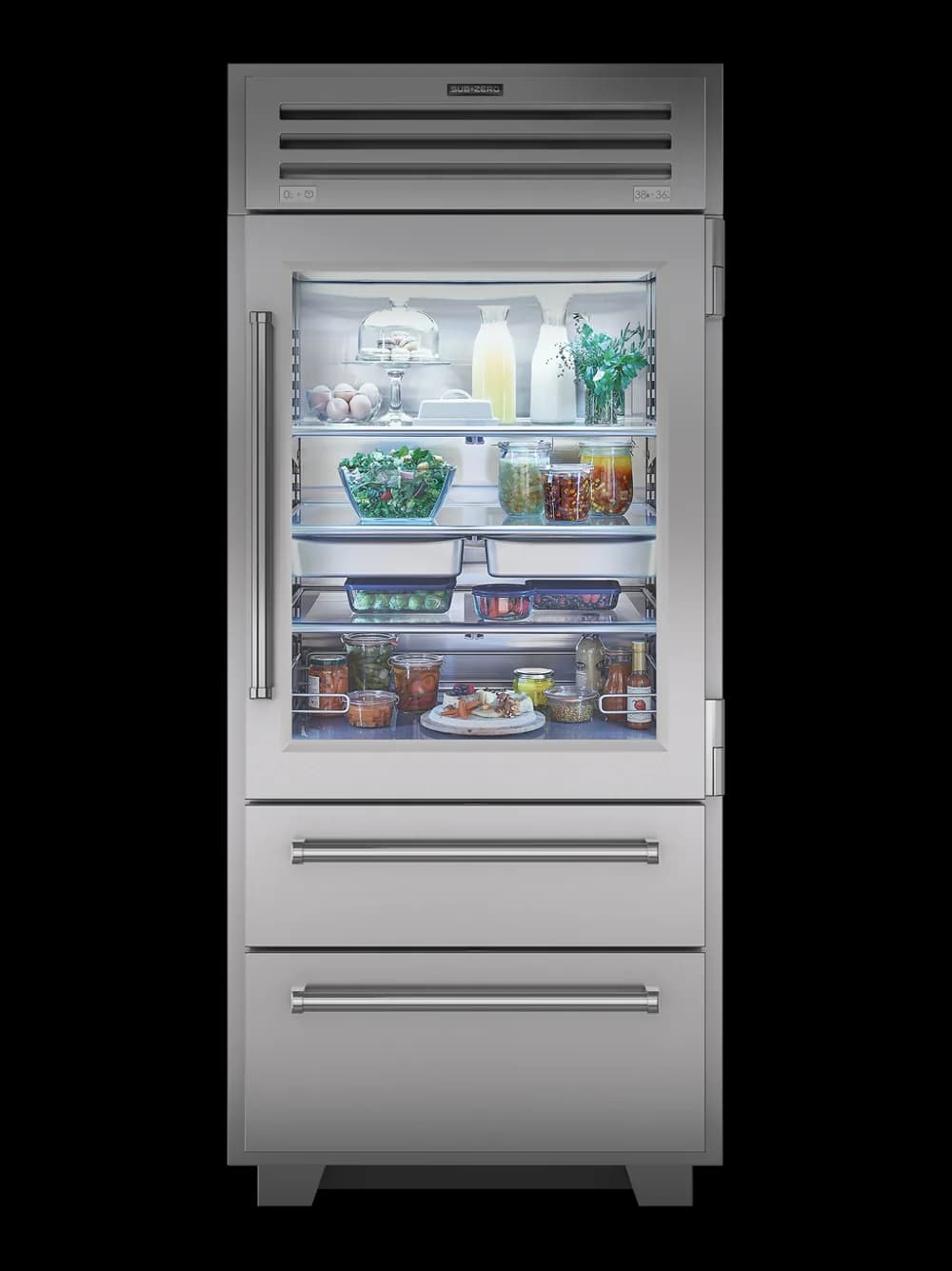

Sub-Zero PRO3650G
Built-in Bottom Mount · Built-in
Overall width: 36 in
Height with hinge: 84 in
Cabinet depth: 23.875 in
Reviewed evidence; includes calculated or inferred values
Measurement evidence

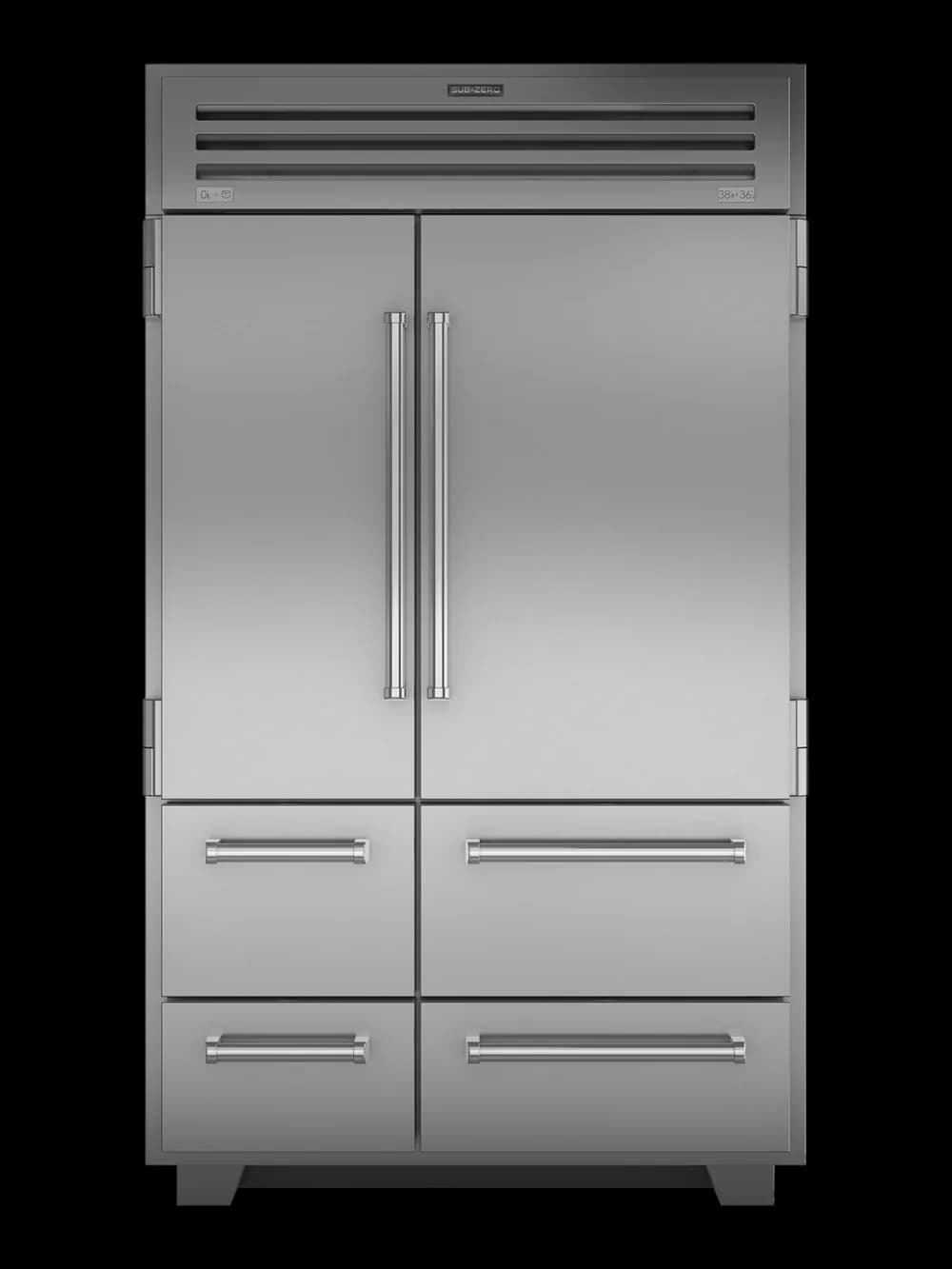

Sub-Zero PRO4850
Built-in French Door · Built-in
Overall width: 48 in
Height with hinge: 84 in
Cabinet depth: 23.875 in
Reviewed evidence; includes calculated or inferred values
Measurement evidence

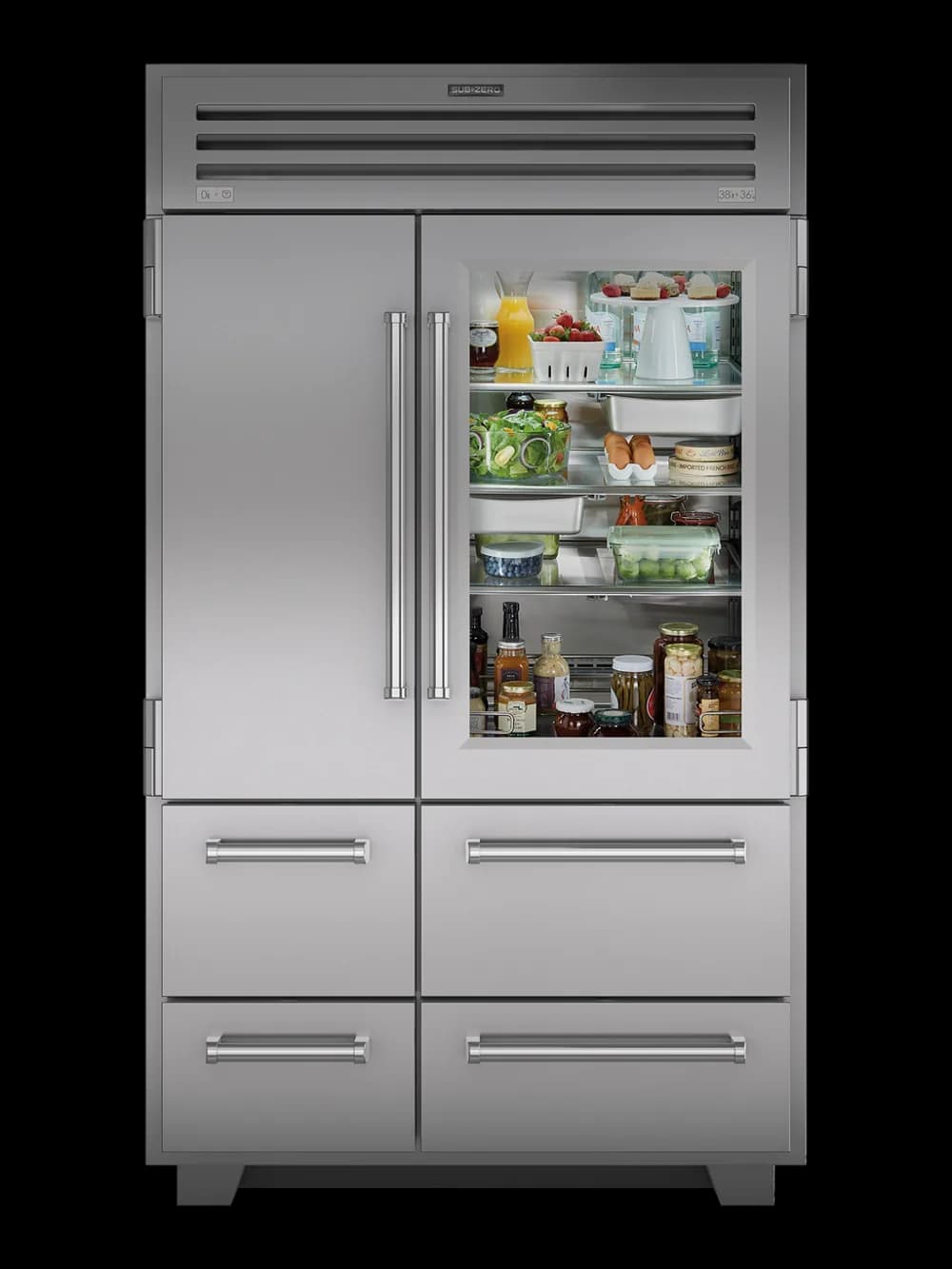

Sub-Zero PRO4850G
Built-in French Door · Built-in
Overall width: 48 in
Height with hinge: 84 in
Cabinet depth: 23.875 in
Reviewed evidence; includes calculated or inferred values
Measurement evidence
